Automatic filter is a kind of equipment that filtrate fuel, and provide reliable protection for the engine through reverse wash function.
With ingenious and concise structural design and reasonable filtration procedure design, it could not only achieve full automatic backwash of the filter cartridge body of filter net, but also discharge filtered solid harmful substance out of the body. The whole filtration and reverse wash process will continue from startup of the filter, and meet the working requirement of unmanned engine room management. It solves the deficiency that manual filter is unable to reverse wash the filter cartridge, and existing automatic filter is either with complicated structure and expensive or unable to discharge off harmful substance.
It adopts drum type structure, filter cartridge body composited by special disk type filter net. It conducts full automatic backwash of the filter net during filtration of fuel through rotating liquid flow control system. It discharges impurity out of the body at certain time or start by pressure difference automatically through pressure difference controller and automatic residue discharge system.
Product features:
1.Complete model and handling capacity
2.Treatment of fuel and lubricant oil
3. Easy installation, operation and maintenance, cheap price
4.Compact structure, small and light
5.Extend the service life of oil
Technical specification

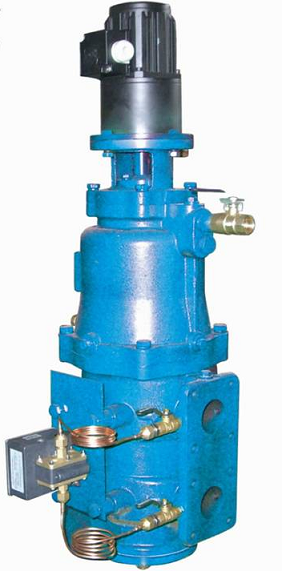

1. Product name:vertical auto back-wishing filter
2. Model:LC03-F150-001/002
3.Specification:filtering accuracy: a. 10 um ; b.20 um; c.30 um
4. Dimension: a.350x400x800 mm; b.500x500x900mm
5.Space for maintenance and installation: a.500x500x1200mm b.800x800x1500mm
6.Surroudding: a.temperature: 0~60℃； b.Anti-shake:≤grade 8 ;
7. Specifications
（1） Working media:FO,LO
（2） Max.working pressure:1.2MPa
（3） Max.working temperature:130℃
（4） Inlet and outlet DN: 1.DN50; 2. DN80
（5） Max.working flow: 1) 10m³/h 2) 20m³/h
（6） Motor:rated voltage:220V Rated frequency:50Hz/60Hz
Motor power:≤①40W ②120W
（7）Normal operating differential pressure range:△P=0.2-0.4bar
Differential pressure alarm value:△P=0.8bar
（8） Release the residue every 24 hs,drainge time: 15s,quantity: 3-6L
8.There are heating steam chamber at the bottom of the filter,mainly for heat tracing capacity: 0.8L
9.Vertical auto back-wishing filter are equipped with independent electrical control box system, it could access to the original electric control system according to user requirements .
10.The filter is equipped with installation pedestal, facilitating the clients to install.
